Platinum Racing Products – Nissan RB Coil Bracket (Twin Cam)



Platinum Racing Products – Nissan RB Coil Bracket (Twin Cam)

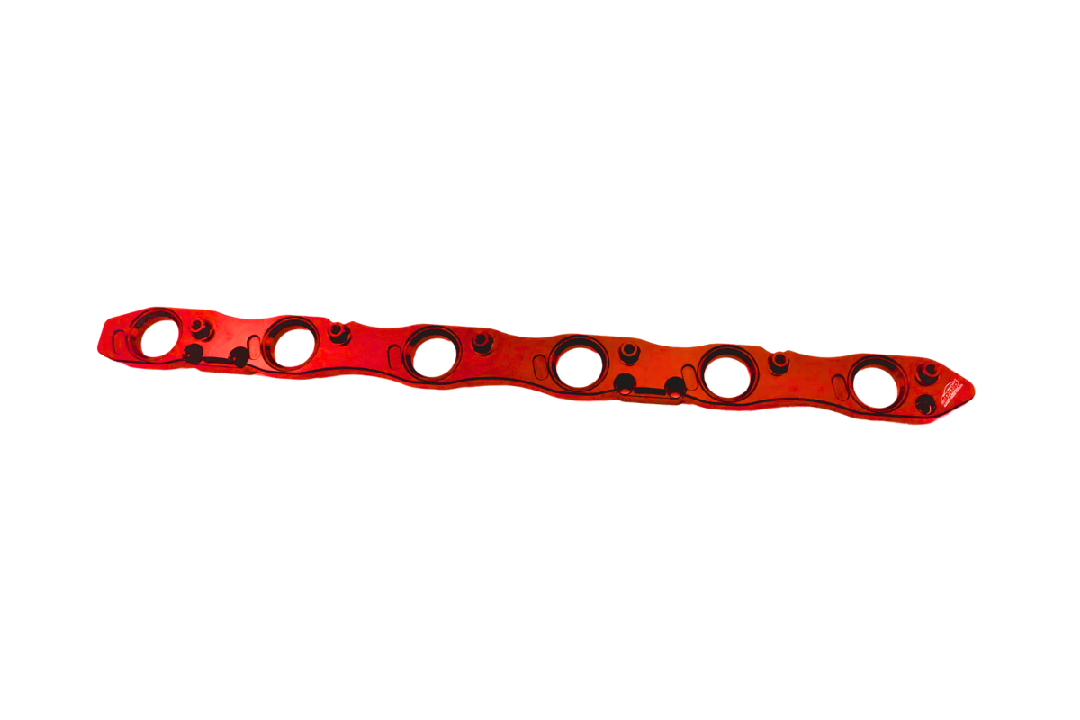

BRACKET ONLY! This product includes only the Nissan RB Coil Bracket. For the full Nissan RB Twin Cam Coil Kit, click here.

About the Nissan RB Twin Cam Coil Kit:

This new generation coil kit has been completely redeveloped and specifically designed as a direct drop-in replacement for the OEM Nissan RB20, RB25, RB26 Heads that are becoming more popular.

These coil kits incorporate Genuine Hitachi R35 GTR Ignition coils and put out near 3 times the OEM power output, the R35 coil kit can be used as a direct plug-in for OEM ECU’s as well as any other aftermarket ECU available.

Key Features:

  • Billet Alloy anodized bracket is engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
  • Kit now includes custom height quality one-piece silicone injected spark plug stalks that seal the spark plug well, avoiding water pooling and inherent engine misfires.
  • Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
  • Coil kit fits well under the valley cover without ANY modification.
  • Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
  • Now clears HKS VCAM.
  • Genuine OEM Hitachi coils are rated to 2600 hp and come with a 1-year warranty.
  • Bolt kit included caters for the 6 ignition coils and billet bracket to head.

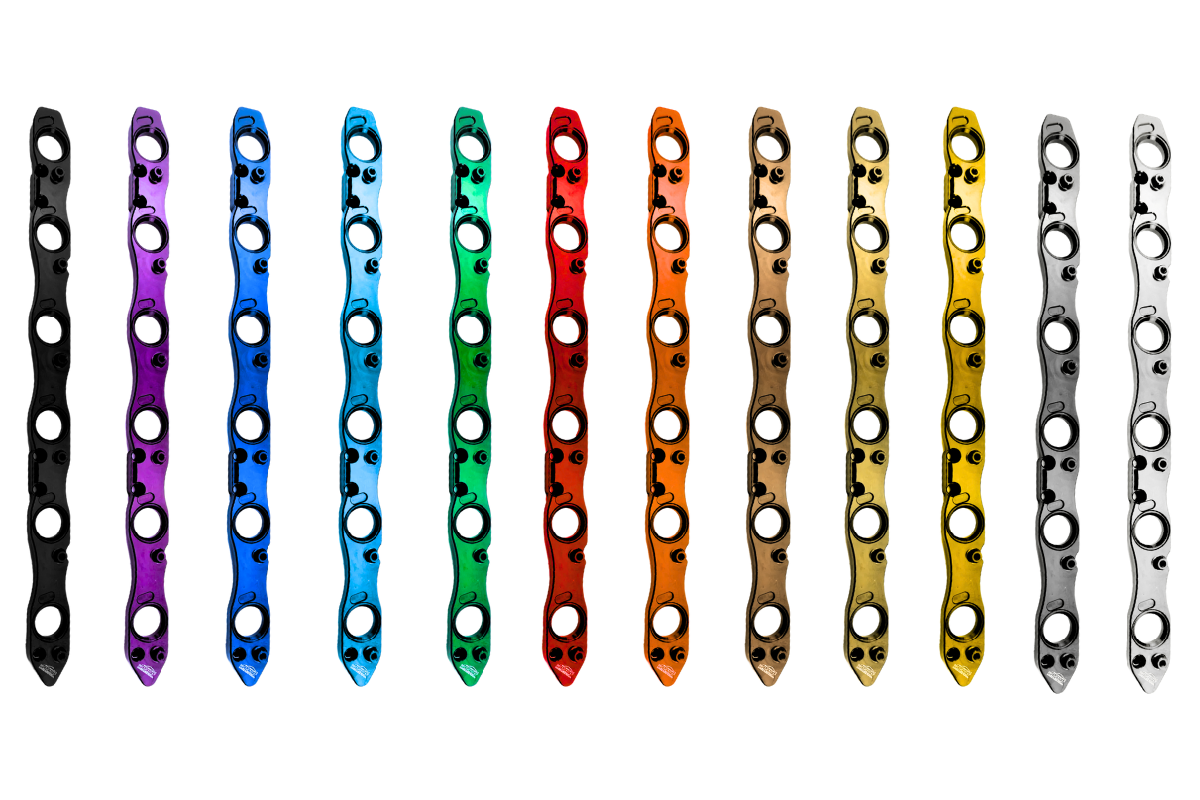

  • Standard colours are now Black, Purple, Red, Silver, Blue with custom order colours Gold, Teal, Green, Teal, Orange, Grey.
  • Lifetime warranty on all PRP products.

RBLOOM1 R32 GTR – 6pin igniter delete big 3pin grey power
RBLOOM2 RB25 – 7pin igniter delete small 2pin grey power
 6pin igniter delete small 2pin black power
8pin harness connector
dt8 deutsch connector end
