ONE2RUN

Mitch’s Nissan Silvia S14 (Zenki)

RB26/30 Swap
8HP70 Transmission
812HP

Style, street and performance, all in one very well-presented package. This S14 is one of those builds that has gotten a little out of hand (in a good way). The owner wanted an 800HP street car and nabbed one of our first SRS built RB26/30’s. With plans for street comfort and a spicy transbrake, this S14 was getting an auto transmission. However, Mitch is a drifter at heart. So, how do you get the best of both worlds? The 8HP.

This S14 has been overhauled from top to bottom to produce the most streetable 800HP S-Chassis we have ever seen. Completed in 2024, be sure to read on for our go-to parts list for 800HP and head to our YouTube channel to watch the whole build series (plus some transbrake action).

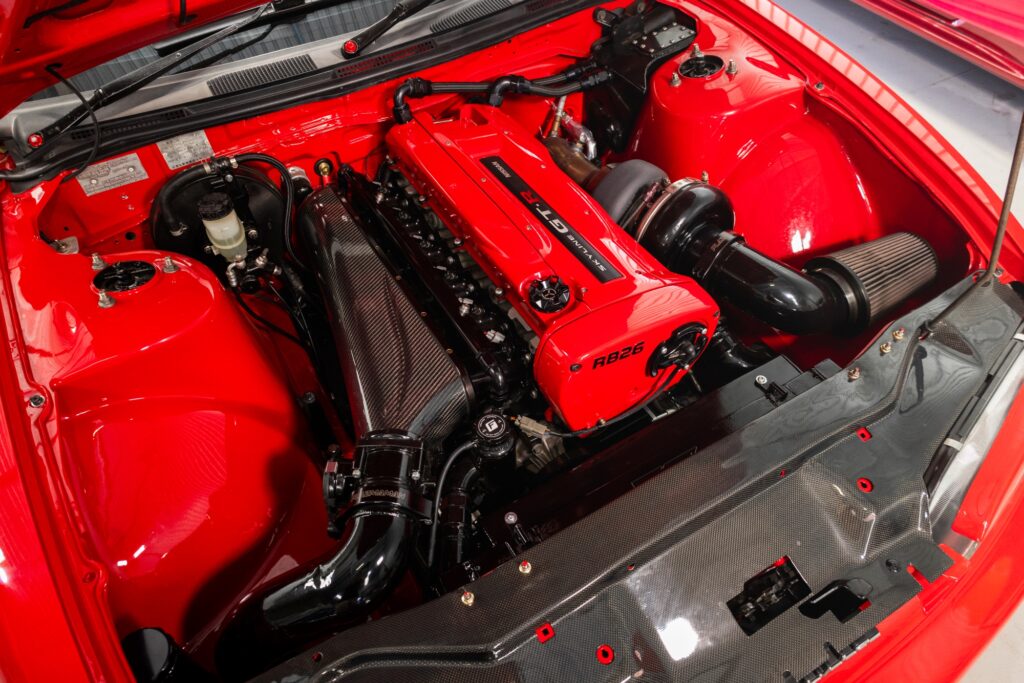

Top & Bottom End

• Nitto RB30 H-Beam Connecting Rods
• Nitto RB30 DOHC Standard Stroke Pistons
• ACL Race Series Big End Bearings
• ACL Race Series Main Bearings
• Nitto RB Oil Pump (Flat Drive)
• ATI RB26 Harmonic Balancer 1000HP
• ARP RB Main Studs (8740)
• Tomei Poncam Type B Camshafts
• Tomei Adjustable Cam Gears
• Nitto RB26 Head Gasket (1.5mm) + Engine Gaskets
• ARP RB26 Head Studs (ARP2000)
• Nitto Head Oil Drain
• SRS Custom RB26 Cylinder Head
• Retains factory cast block, crank, cam covers, timing covers, cam cap studs

Turbocharger & Exhaust

• Garrett G42-1200 Compact (1.01A/R, T4 / V-Band)
• 6boost RB26 Exhaust Manifold
• Turbosmart GenV ProGate50 Wastegate
• Turbosmart – GenV RacePort BOV
• Custom SRS 4″ Dump Pipe
• AES Valve Kit 4″

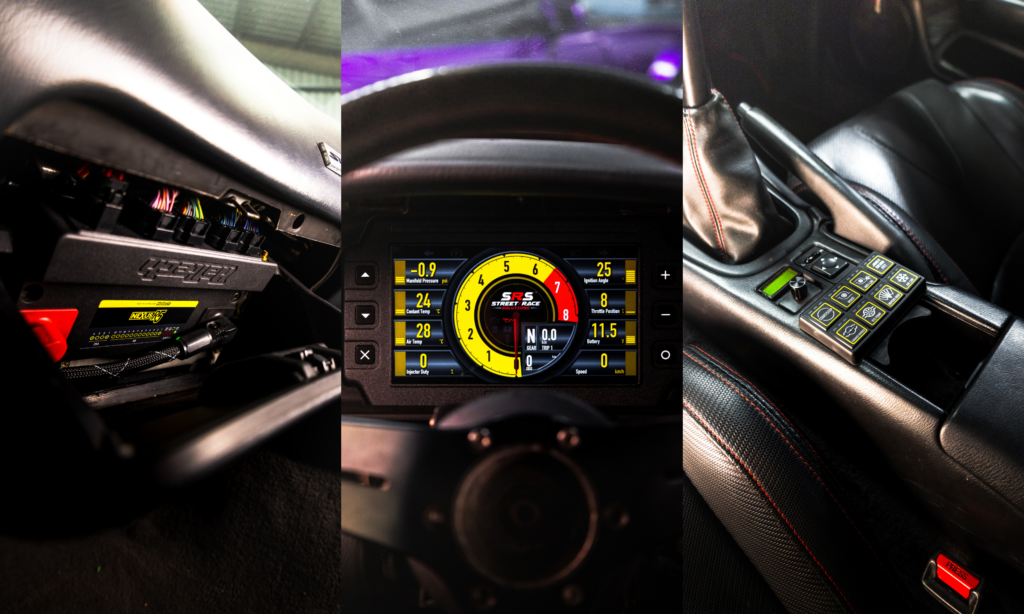

Engine Management

• Haltech R5 VCU
• Haltech iC-7 Display Dash
• Haltech CAN Keypad 8 Button (2×4)
• Mako Motorsport iC-7 Dash Mount
• Platinum Racing Products RB ‘Race Series V2’ Trigger Kit
• Platinum Racing Products Ignition Coil Kit
• Platinum Racing Products LS1 Alternator Conversion

Fuel System

• Bosch 2200cc Injectors
• Walbro 525LPH Fuel Pumps
• Turbosmart Fuel Pressure Regulator (FPR8)
• Speedflow 602 Fuel Filter
• Radium Fuel Pump Hanger
• SRS Custom Surge Tank

Intake & Cooling System

• CPC Carbon Fibre Intake Manifold (Single Rail, 6 Injector)
• Plazmaman Pro Series Intercooler (600x300x100)
• Plazmaclamps 3.5″
• K&N 4″ Tapered Air Filter
• PWR 28 Row Oil Cooler x 2 (Transmission & Engine)
• Fenix Tucked Radiator (RB Swap)
• Nismo Thermostat

Driveline & Suspension

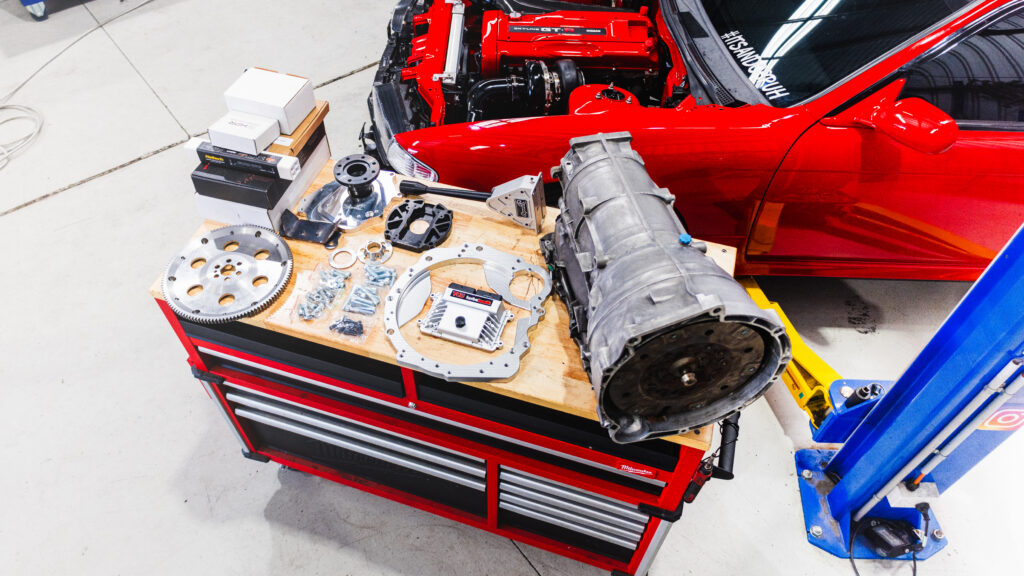

• 8HP70 Transmission
• MCA Pro Stance Coilovers
• Voodoo Adjustable Arms (Contact Us)
