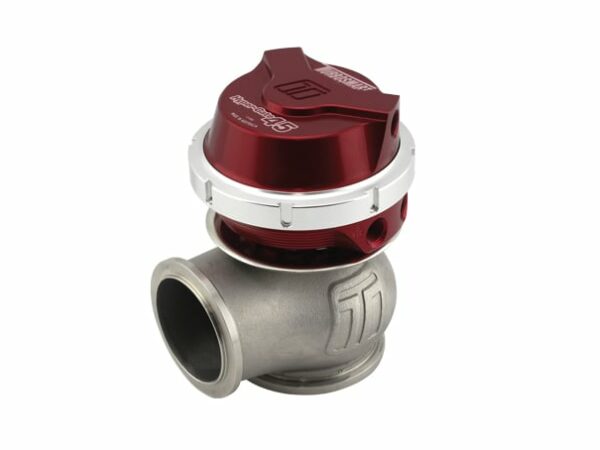

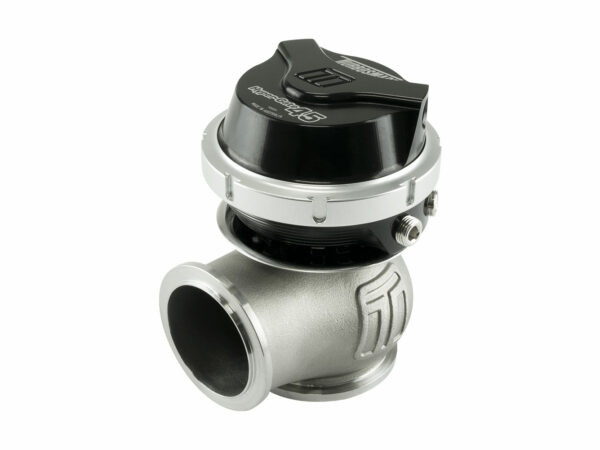

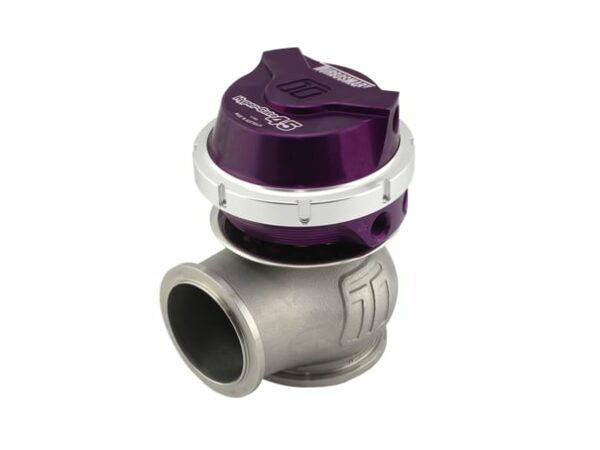

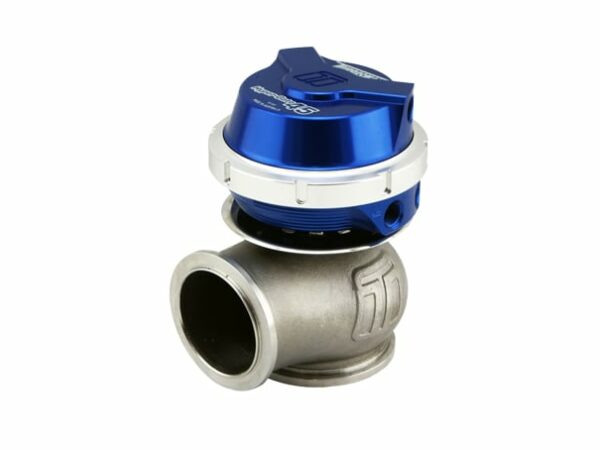

Turbosmart GenV HyperGate45 14psi External Wastegate

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate – The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV HyperGate45 External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management; the GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

HyperGate45 Features:

  • Class Leading Thermal Performance
  • Class Leading CFD & Bench Validated Flow Performance
  • Class Leading Fatigue Resistance
  • Optional Liquid Actuator Cooling
  • Optional Position Sensor Available Separately
  • Rotatable / Clock-able Actuator Housing
  • Nitronic 60 Valve Guide & High Temp 347 SS Body
  • 17-7 PH Stainless Steel Springs
  • Strap Type V-band clamps


Supplied with:

  • GenV Wastegate unit
  • All Springs Included
  • (1 Inst. As per Description)
  • Locking Collar Tool
  • GenV SS316 Valve seat
  • Strap Type V-Bands
  • Inlet & Outlet Weld Flanges
  • Hose Tail & Blank Fitting Kit
  • Turbosmart Decal
