Turbosmart – GenV EALV40 Electronic Anti-Lag Valve



SKU: TS-0552-1601 Categories: ,


Turbosmart Wastegate

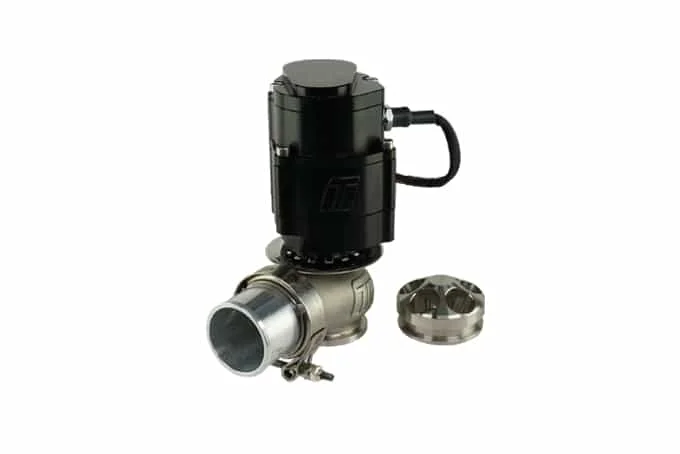

GenV EALV40 Electronic Anti-Lag Valve

The Turbosmart eALV40 (Fresh-Air bypass Anti-Lag Valve) for motorsport & high-Performance Applications featuring fully electronic actuation, removing the need for the solenoids & tanks of traditional pneumatic systems. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

Don’t have an ECU that has a spare Dual Half-Bridge Output? No problem at all, checkout the Turbosmart BlackBox Electronic Wastegate Controller with up to 2 independent channels via simple PWM inputs, or more advanced CAN based inputs – All onboard & in the one unit!


  • Nitronic 60 Valve Guide & High Temp 347 SS Body
  • Liquid Cooled, Electronic Actuator
  • Strap Type V-ban clamps
  • User Adjustable Actuator Position
  • Onboard Analog 0-5V Valve Position Sensor
  • Onboard Analog 0-5V Actuator Temperature Sensor
  • Onboard Digital (PWM) Valve Position Sensor

Supplied with:

  • GenV eALV40 Electronic Anti-Lag Valve
  • Un-Terminated Flying Lead
  • Valve Seat
  • Inlet & Outlet V-band Clamp
  • Inlet Hose Adapter 1-1/2″ (38.1mm)OD
  • C Spanner / Collar Tool
  • Inlet O-ring
  • Turbosmart Decal
