Nitto SR20 Head Gasket 88mm

$379.00

Description

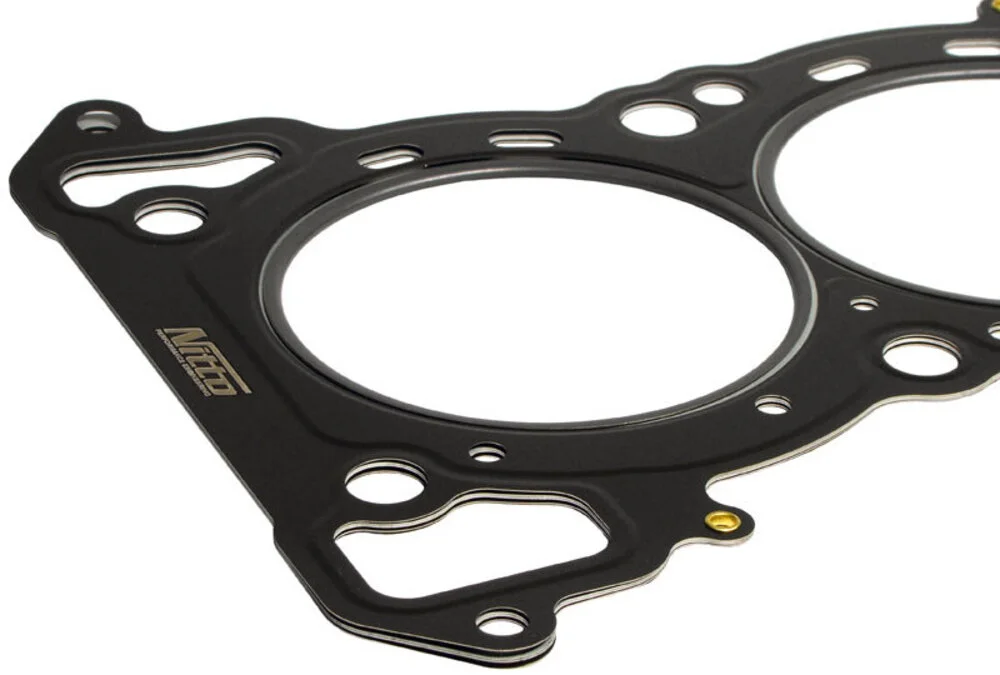

Nitto SR20 Head Gasket 88mm

This Nitto SR20 Head Gasket is to suit Nissan SR20DE and Nissan SR20DET engines with 88mm bores. Available in 1.2mm, 1.5mm and 1.8mm, engine builders know the quality and superior high pressure seal of the Nitto DBS gaskets.

Nitto SR20 Head Gasket Features:

  • Stainless metal “o-ring” and bead seal around bore for a superior seal from combustion pressure
  • Extreme duty HR-200 coating for water and oil gallery sealing between the head and block

Suits: Nissan SR20DE and Nissan SR20DET (88mm bore)

Nitto DBS Drag Series multi layer metal head gaskets offer unparalleled performance and superior sealing where it counts. Using only the highest quality materials ensures you get the best possible seal. Proven reliability makes Nitto DBS Drag series head gaskets second to none.

Nitto DBS Drag Series metal gaskets not only use a proven and trusted bead style seal around the bore area but also feature an industry leading stainless metal “O-ring” in addition to the bead seal around the bore that completely seals the multi layers of the gasket from the combustion pressures in the engine.

Nitto has carried out extensive testing using “Fuji Prescale Film” pressure testing technology with results concluding that the metal “O-ring” featured on the range of Nitto DBS Drag Series metal head gaskets also provides the highest pressure seal around the bore of any gasket on the market.

Extreme duty HR-200 coating is employed on the range of Nitto DBS Drag Series metal gaskets and is far superior to viton coating which is commonly found on cheaper mass produced performance gaskets. The HR-200 coating offers a premium seal for both water and oil galleries between the cylinder head and the engine block.

These features make Nitto’s range of DBS Drag Series Metal Gaskets the must have gasket to install on your high performance engine.

Nitto SR20 Head Gasket Thickness Options:

  • 1.2mm (Part Number: NIT-MHG-SR2012)
  • 1.5mm (Part Number: NIT-MHG-SR2015)
  • 1.8mm ((Part Number: NIT-MHG-SR2018)
