Haltech Nexus R3 VCU
$3,399.00
FREE SHIPPING
Description

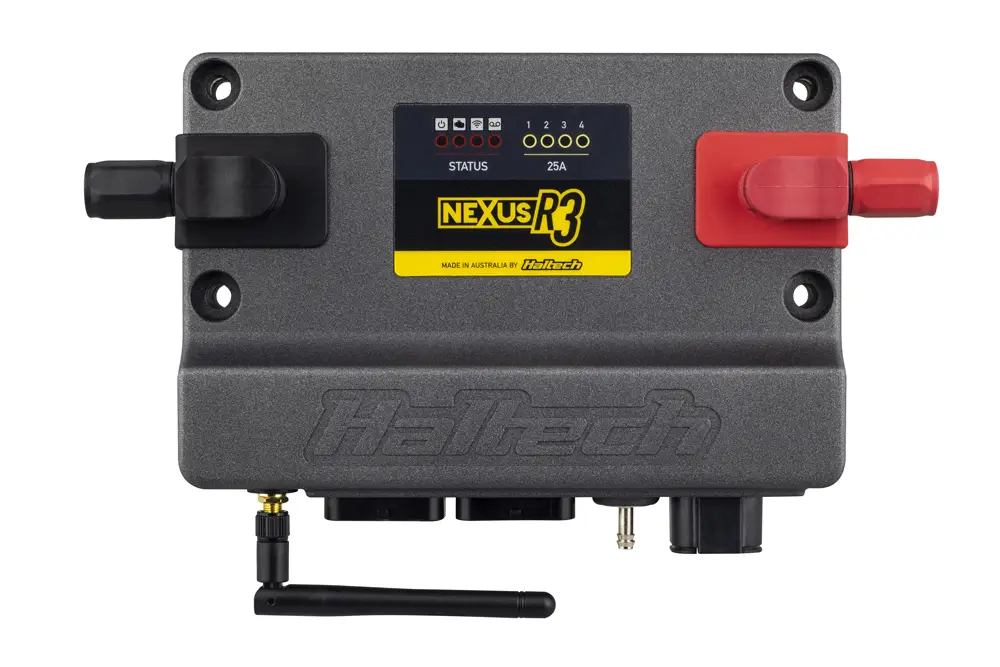

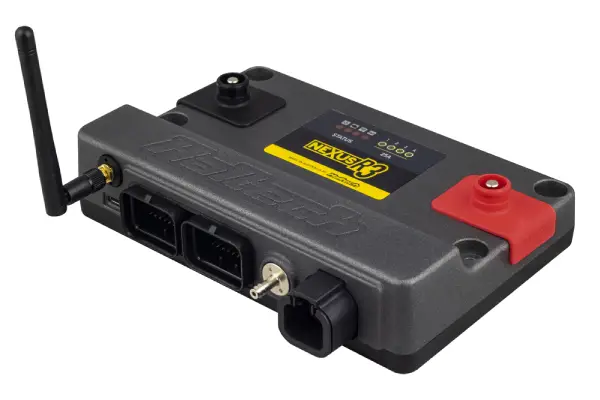

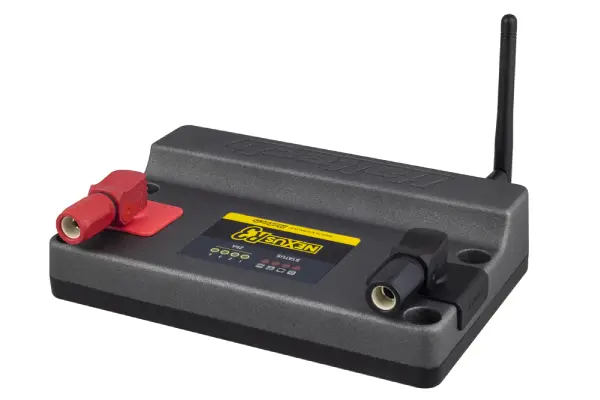

Haltech Nexus R3 VCU
The NEXUS R3 is one of Haltech’s Vehicle Control Units (VCU) which features additional functionality that extends beyond just engine control. Boasting innovative yet user-friendly technology, it sets a new market standard for engine management and power distribution systems. An ECU, PDM, Wi-Fi module, wideband controller and a data logger all in one.
Suits: Engines with up to 8 cylinders or up to 4 rotors. Racing applications where advanced race features, data logging and power management control is required.
Includes: Nexus R3 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap.
Nexus R3 Overview:
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
What’s in the box?
- Nexus R3 VCU
- SurLok Connectors (Red & Black)
- Wi-Fi Antenna RP-SMA 108mm
- Mounting Bolts
- USB-C Cable
- USB-C Dust Cap
- Reverse mount VCU label
- USB Key with NSP Software
- Haltech Product Catalogue
Part Number: HT-193000
