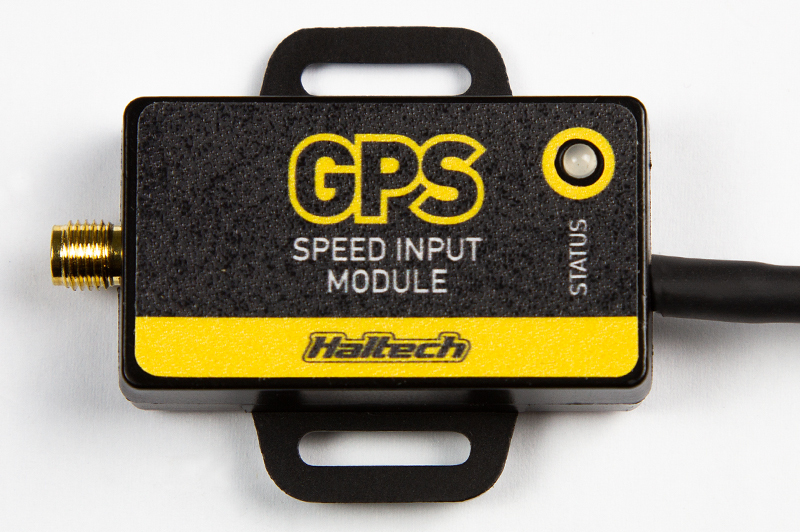

Haltech GPS Speed Input Module


In Stock & Ready to Ship

SKU: HT-011310 Categories: ,


Haltech GPS Speed Input Module Length: 300mm

These modules convert GPS Speed to a pulsed digital output. Using data received from the Global Positioning Satellite network, the GPS SPeed Sender calculates three-dimensional ground speed and provides a pulsed output similar to that of a mechanical speed sensor.

These modules are an ideal replacement for mechanical speed senders.

Length: 300mm

Outputs: 0V to 12V Pulsed Output

Suits: Applications that require a digital speed signal


  • GPS Speed Input Module
  • GPS Antenna Matching male DTM-3 Connector and pins

Notes: Calibration: 5000ppk (5000 pulses per km), Use with SPI or DPI ECU Inputs, GPS update Rate 10Hz, High Accuracy 0.3% Deviation, Pulse Compensation in tunnel, Anti GPS Drift technology.

About Haltech:

Haltech has been at the cutting edge of engine management technology since it first opened its doors back in 1986. Now sold in over 50 countries, Haltech and known for their engine management in many record-setting race vehicles. Dedicated to quality, innovation and passion – Haltech systems are an engine management brand of choice for quality and ease of use.

Haltech Off-Road Use Policy:
It is unlawful to tamper with your vehicle’s emissions equipment. Haltech products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only. Using Haltech products for street/road use on public roads is prohibited by law. It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before using any Haltech product.
