Garrett G45-1500 Turbocharger 76mm
$4,334.00 – $6,099.00
FREE SHIPPING
Ships in 2 – 3 days
Description

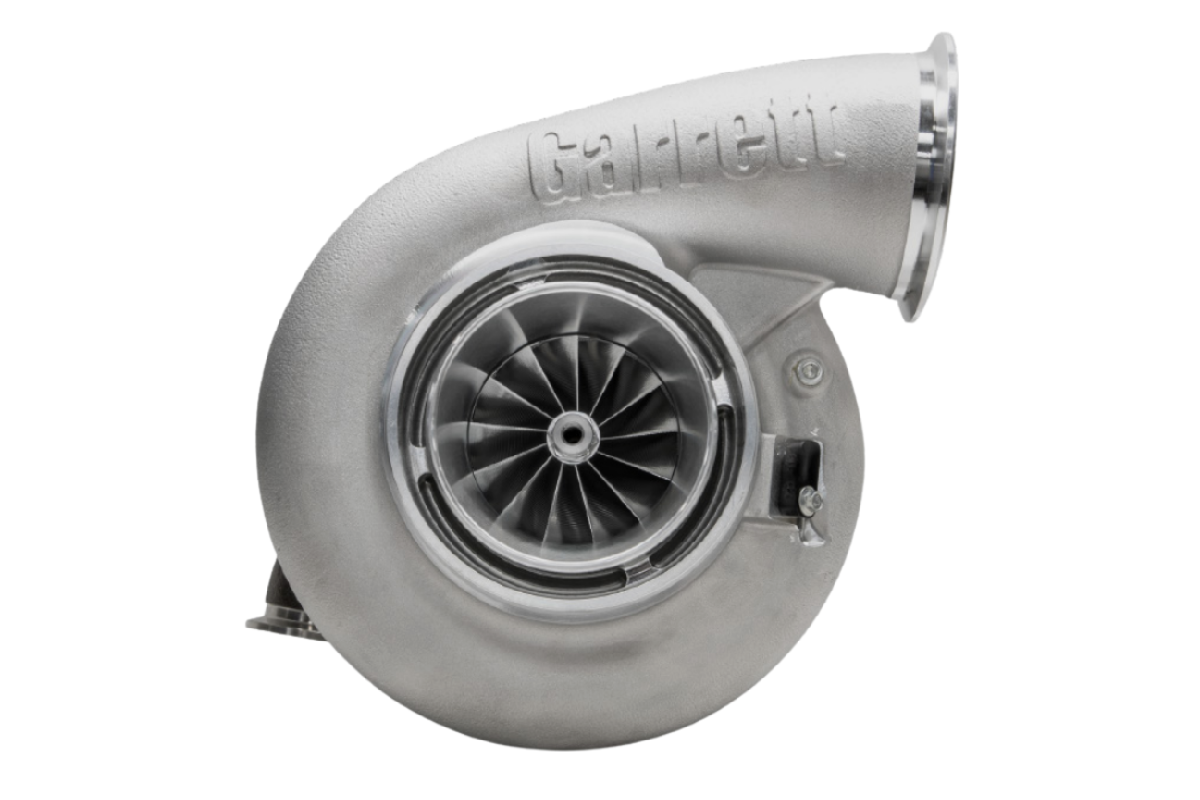

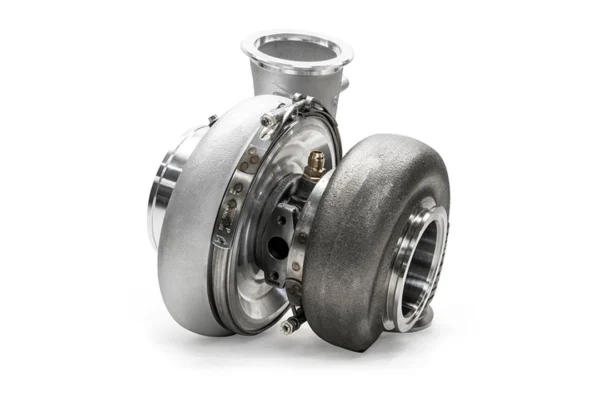

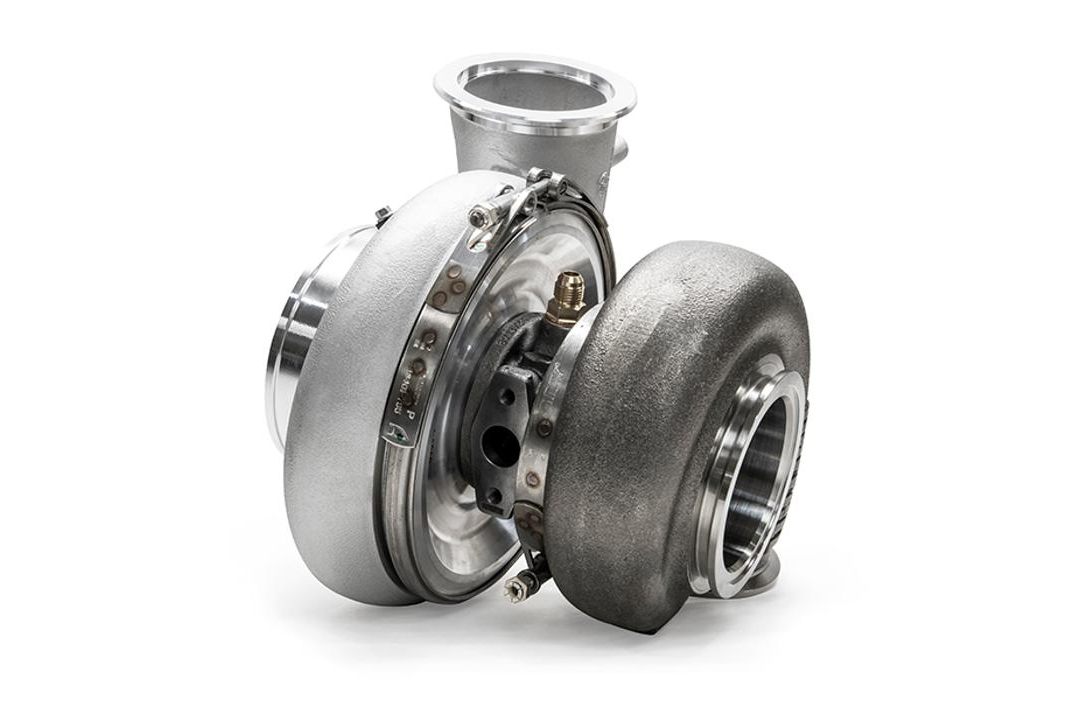

Garrett G45-1500 Turbocharger 76mm
The G45-1500 76mm forms part of the Garrett G-Series, taking the lead in technology from it’s predecessor, the GTX4508R. Offering up a 16% increase in compressor aero flow and 14% increase in turbine aero flow, the G-Series brings the best in turbo performance!
- Standard Rotation
- External Wastegate
- 2.0L – 8.0L engine displacements
- 750HP – 1500HP
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G45-1500, we would recommend it’s use in up to 1200 wheel horsepower applications.
Turbocharger Options
The G45-1500 can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone rear housing orders.
- 1.01 A/R, V-Band / V-Band (888169-5005S + 757707-0019)
- 1.15 A/R, V-Band / V-Band (888169-5005S + 757707-0020)
- 1.28 A/R, V-Band / V-Band (888169-5005S + 757707-0021)
- 1.44 A/R, V-Band / V-Band (888169-5005S + 757707-0022)
- 1.01 A/R, T4 Twin Scroll / V-Band (888169-5005S + 757707-0023)
- 1.15 A/R, T4 Twin Scroll / V-Band (888169-5005S + 757707-0024)
- 1.28 A/R, T4 Twin Scroll / V-Band (888169-5005S + 757707-0025)
- 1.44 A/R, T4 Twin Scroll / V-Band (888169-5005S + 757707-0026)
- 888169-5005S: G45-1500 Standard Rotation Supercore ONLY
Fully machined speed sensor and pressure ports, water fittings included.
Garrett G45-1500 Specifications:
- 10mm Ceramic Dual Ball Bearing
- Stainless Steel Turbine Housing
- Aluminium Back Plate
- Fully Machined Speed Sensor And Pressure Ports
- Compressor Inducer: 76mm
- Compressor Exducer: 109mm
- Compressor Trim: 49
- Turbine Inducer: 89mm
- Turbine Exducer: 82mm
- Turbine Trim: 84
Understanding the Name:
G Series turbocharger
45 classifies the size of the frame
1500 identifies the maximum crank horsepower rating of the turbocharger
The proof is in the pudding, this turbo has been tried and tested on the street and track in GOKU32, tuned in house making 1230HP on 41PSI. If you’re looking for the best turbo upgrade for your JDM performance engine, you can’t look past a Garrett turbo.
If you are looking for a 1200HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
