Garrett G45-1350 72mm



SKU: G45-1350 Categories: ,

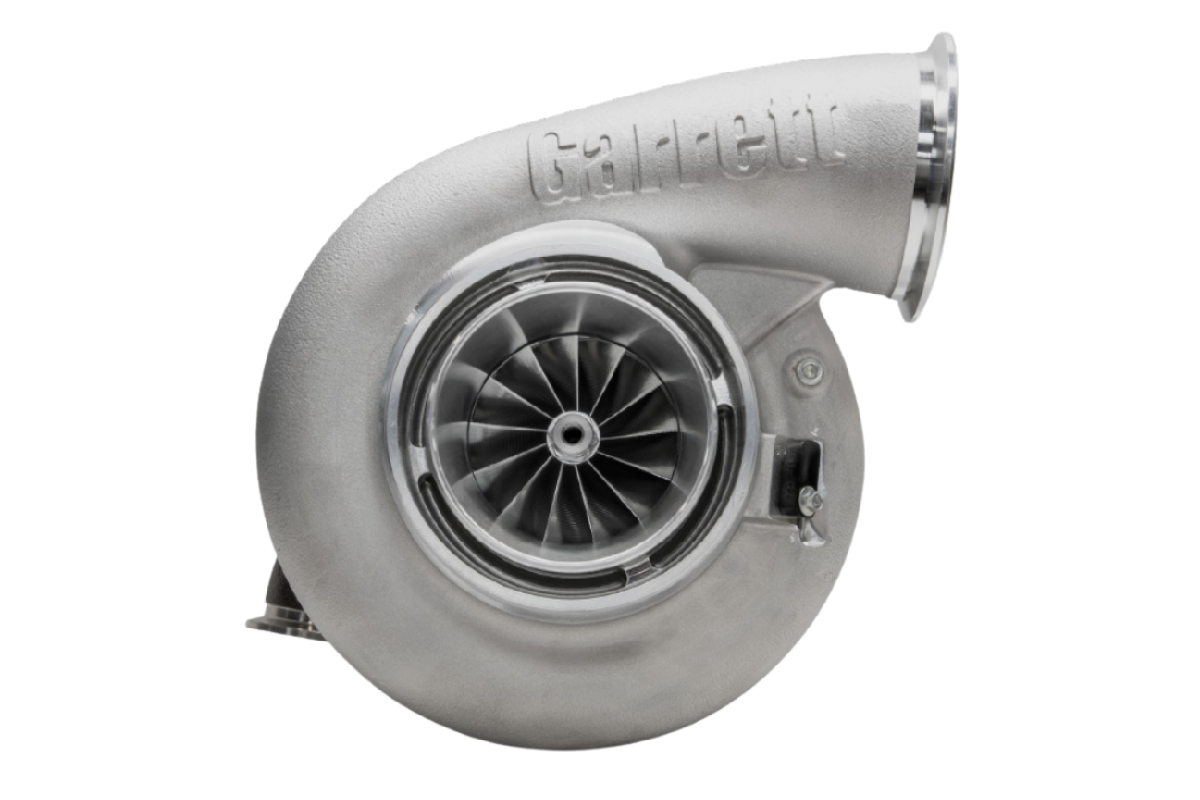

Garrett G45-1350 Turbocharger 72mm

The Garrett G-Series G45-1350 turbos are compatible with 2.0L – 6.0L engine displacements and capable of producing up to 1350 horsepower!

G45-1350 Part Number: 888169-5004S

Garrett G45-1350 72mm Features:

  • G45-1350 compressor aero increases flow up to 15% (compared to GTX4502R 72mm)
  • 72mm compressor inducer | 102mm compressor exducer
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 14% (compared to GTX45R)
  • Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Stainless steel turbine housings available in T4 divided inlet
  • Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

Understanding the Name:
G designates 81 years of Garrett® heritage.
45 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 1350)

If you’re unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!

About Garrett:

Garrett was born out of the passion of American founder, John Garrett, for aviation and engineering with the first product, an aircraft intercooler, released in the 1930’s. Turbochargers began rocketing in 1954 and into the auto industry in the 1990’s, when turbochargers went mainstream and global.

With more than 60 years of pioneering turbocharging systems, Garrett Motion is an automotive technology leader in turbochargers and related force induction systems. The company remains American base and is well regarded as one of the best in motorsport turbocharging technology.
