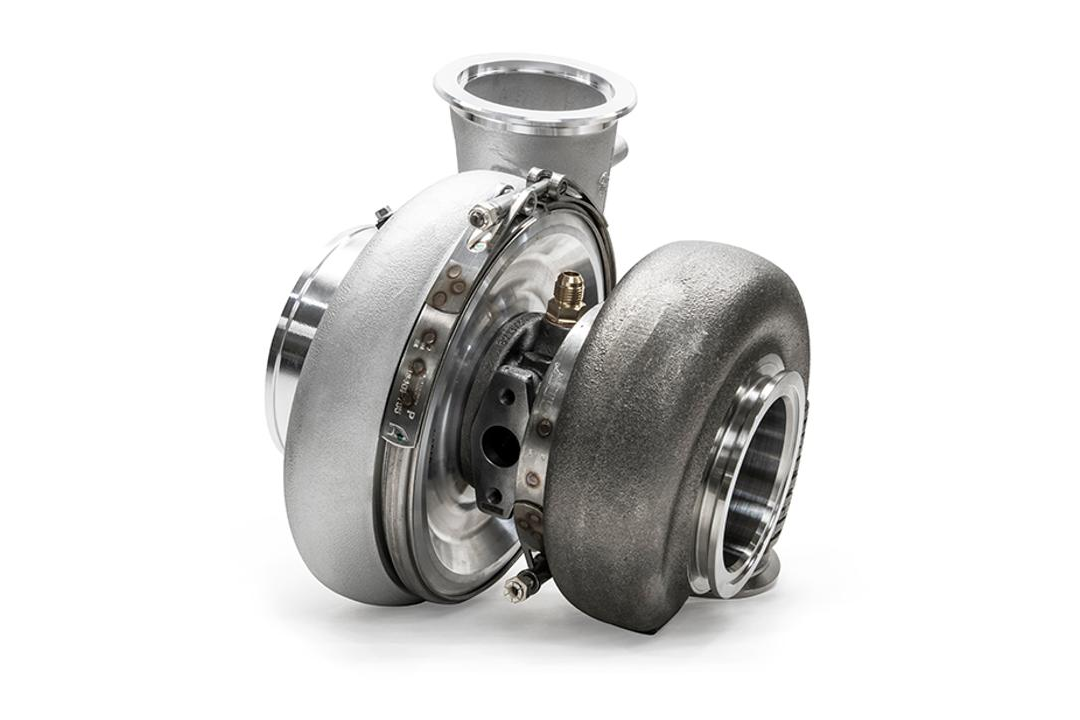

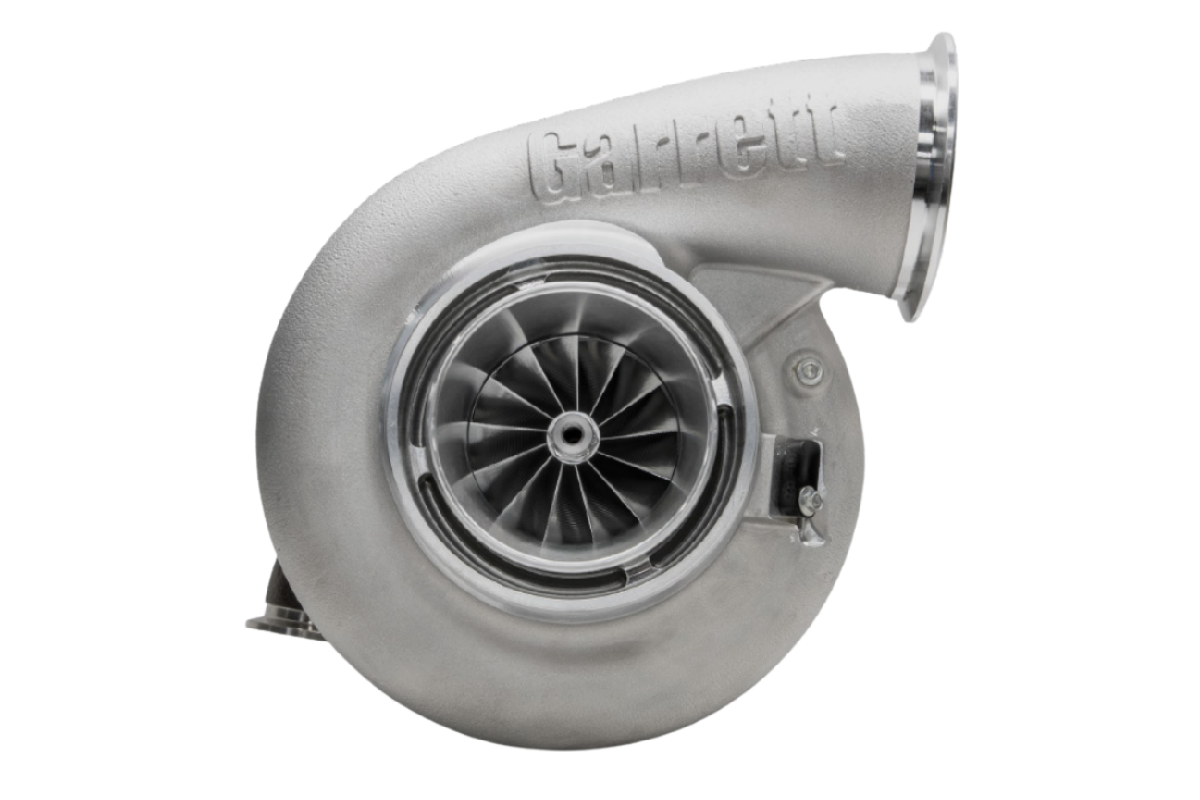

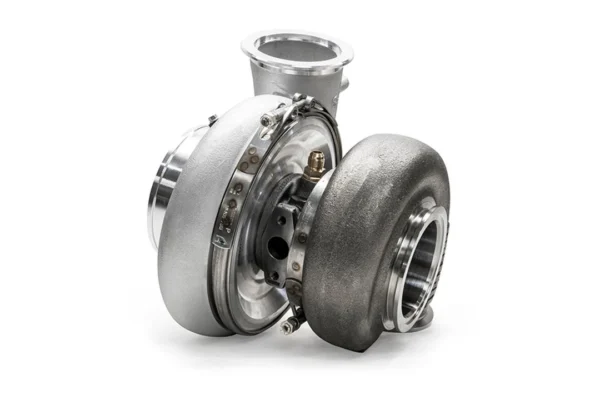

Garrett G45-1125 Turbocharger 67mm
$4,640.00 – $5,799.00
FREE SHIPPING
Ships in 2 – 3 days
Description
Garrett G45-1125 Turbocharger 67mm
The G45-1125 67mm forms part of the Garrett G-Series, taking the lead in technology from it’s predecessor, the GTX4502R. Offering up a 10% increase in compressor aero flow and 14% increase in turbine aero flow, the G-Series brings the best in turbo performance!
- Standard Rotation
- External Wastegate
- 2.0L – 8.0L engine displacements
- 600HP – 1125HP
- V-Band or T4 Twin Scroll
- 1.01, 1.15, 1.28 or 1.44 A/R
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G45-1125, we would recommend it’s use in up to 900 wheel horsepower applications.
Turbocharger Options
The G45-1125 can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone rear housing orders.
- 1.01 A/R, V-Band / V-Band (888169-5003S + 757707-0019)
- 1.15 A/R, V-Band / V-Band (888169-5003S + 757707-0020)
- 1.28 A/R, V-Band / V-Band (888169-5003S + 757707-0021)
- 1.44 A/R, V-Band / V-Band (888169-5003S + 757707-0022)
- 1.01 A/R, T4 Twin Scroll / V-Band (888169-5003S + 757707-0023)
- 1.15 A/R, T4 Twin Scroll / V-Band (888169-5003S + 757707-0024)
- 1.28 A/R, T4 Twin Scroll / V-Band (888169-5003S + 757707-0025)
- 1.44 A/R, T4 Twin Scroll / V-Band (888169-5003S + 757707-0026)
- G45-1125 Standard Rotation Supercore ONLY (888169-5003S)
Fully machined speed sensor and pressure ports, water fittings included.
Garrett G45-1125 Specifications
- Upgraded Inconel Turbine Wheel
- Aluminium Back Plate
- Ceramic Dual Ball Bearing with Steel Cages
- Stainless Steel Turbine Housing
- 73% Maximum Efficiency
- Compressor Inducer: 67mm
- Compressor Exducer: 102mm
- Compressor Trim: 44
- Compressor A/R: 0.85
- Turbine Inducer: 89mm
- Turbine Exducer: 82mm
- Turbine Trim: 84
Understanding the Name
G Series turbocharger
45 classifies the size of the frame
1125 identifies the maximum crank horsepower rating of the turbocharger
The proof is in the pudding, the G45 G Series turbochargers have been tried and tested on the street and track in HYPEGAME and GOKU32. If you’re looking for the best turbo upgrade for your JDM performance engine, you can’t look past a Garrett turbo.
If you are looking for a 900HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
