Garrett G42-1200 Turbocharger 73mm
$4,320.00 – $5,199.00
FREE SHIPPING
Ships in 2 – 3 days
Description

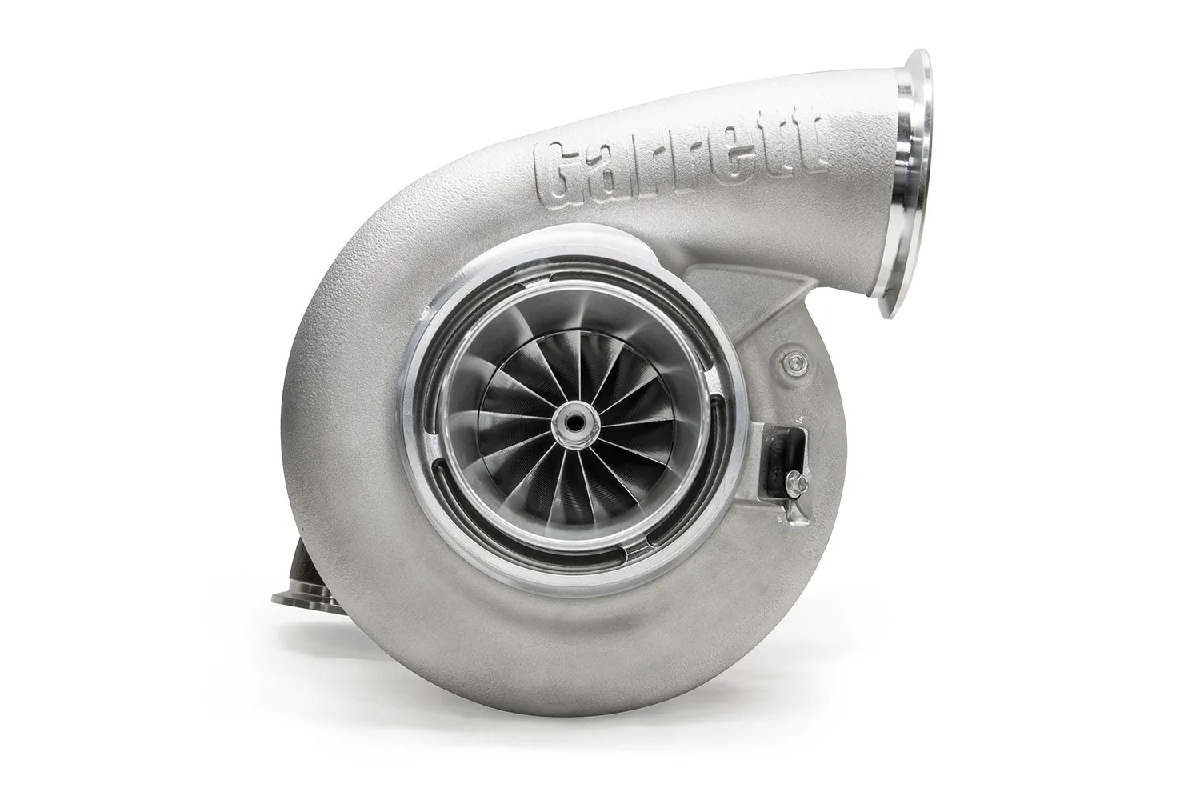

Garrett G42-1200 Turbocharger 73mm

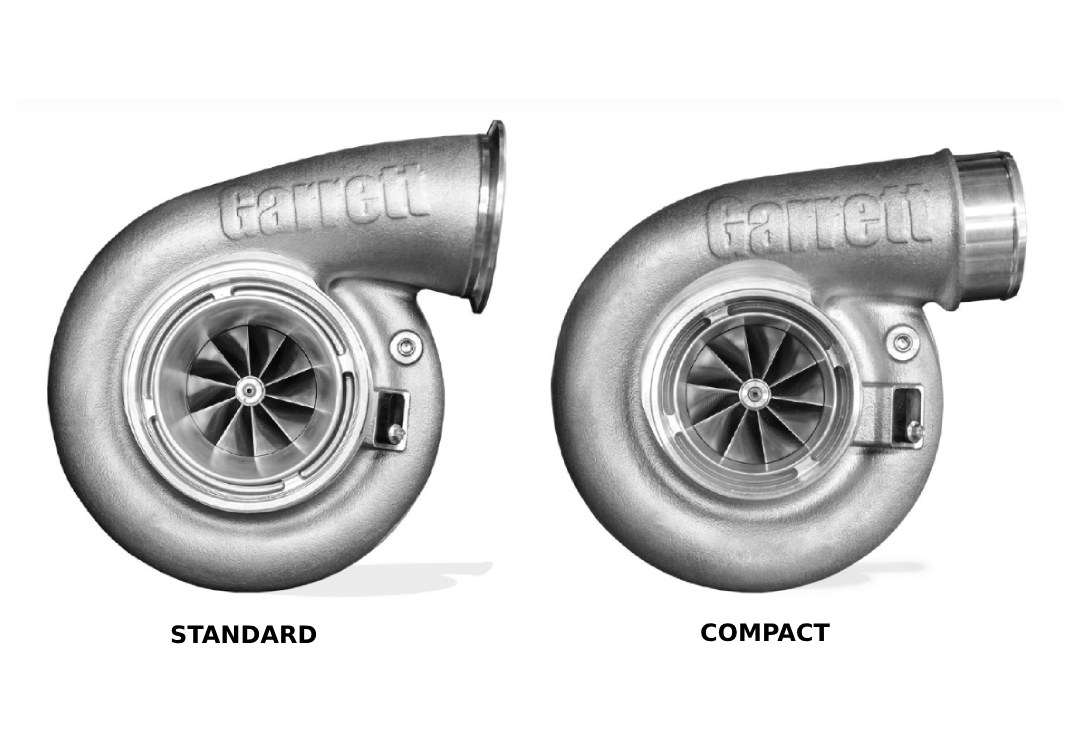

The G42-1200 turbocharger offers the full sized G42 compressor cover, with all the efficiencies of G Series technology! It’s little brother, the Compact G42-1200 is the space saver version of this turbo coming in 4mm shorter axially and 29mm radially. If space isn’t a problem for you, read on!
- Standard Rotation
- External Wastegate
- 2.0L – 7.0L engine displacements
- 475HP – 1200HP
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For this turbo, we would recommend it’s use in up to 960 wheel horsepower applications.
Turbocharger Options
The G42-1200 turbo can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone rear housing orders.
- 1.01 A/R, V-Band / V-Band (860778-5004S + 757707-0011)
- 1.15 A/R, V-Band / V-Band (860778-5004S + 757707-0012)
- 1.28 A/R, V-Band / V-Band (860778-5004S + 757707-0013)
- 1.01 A/R, T4 Twin Scroll / V-Band (860778-5004S + 757707-0014)
- 1.15 A/R, T4 Twin Scroll / V-Band (860778-5004S + 757707-0015)
- 1.28 A/R, T4 Twin Scroll / V-Band (860778-5004S + 757707-0016)
- G42-1200 Standard Rotation Supercore ONLY (860778-5004S)
Fully machined speed sensor and pressure ports, water fittings included.
Garrett G42-1200 Specifications
- Upgraded Inconel Turbine Wheel
- Aluminium Back Plate
- Ceramic Dual Ball Bearing with Steel Cages
- Stainless Steel Turbine Housing
- 77% Maximum Efficiency
- Compressor Inducer: 73mm
- Compressor Exducer: 91mm
- Compressor Trim: 65
- Compressor A/R: 0.85
- Turbine Inducer: 82mm
- Turbine Exducer: 75mm
- Turbine Trim: 84
Understanding the Name
G Series turbocharger
42 classifies the size of the frame
1200 identifies the maximum crank horsepower rating of the turbocharger
The proof is in the pudding! The G42 turbo has been tired and tested on the street and track in ONE2RUN, built in house making over 812HP! If you’re looking for the best turbo upgrade for your JDM performance engine, you can’t look past a Garrett turbo.
If you are looking for a 950HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
