Garrett G40-900 Turbocharger 62mm
$3,481.00 – $4,399.00
FREE SHIPPING
Ships in 2 – 3 days
Description
Garrett G40-900 Turbocharger 62mm
The G40-900 turbo forms part of the Garrett G-Series, taking the lead in technology from it’s predecessor, the GTX4088R. Offering up a 32% increase in compressor flow and 16% increase in turbine aero flow, the G-Series brings the best in turbo performance!
- Standard Rotation Only
- External Wastegate Only
- 2.0L – 6.0L engine displacements
- 500HP – 900HP
- V-Band or Twin Scroll T4
- 0.85, 0.95, 1.06 or 1.19 A/R
The G40-900 is the smaller of the two compressor inducer sizes available in the G Series G40 range. It’s bigger brother, the G40-1150 offers a larger compressor inducer size of 71mm. Turbine housings are interchangeable between the G40-900 and G40-1150.
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G40-900 we would recommend it’s use in up to 720 wheel horsepower applications.
Turbocharger Options
The G40-900 can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone Garrett G40-900 turbine housing orders.
- 0.85 A/R, V-Band / V-Band (860777-5003S + 757707-0027)
- 0.95 A/R, V-Band / V-Band (860777-5003S + 757707-0028)
- 1.06 A/R, V-Band / V-Band (860777-5003S + 757707-0029)
- 1.19 A/R, V-Band / V-Band (860777-5003S + 757707-0030)
- 0.85 A/R, T4 Twin Scroll / V-Band (860777-5003S + 757707-0032)
- 0.95 A/R, T4 Twin Scroll / V-Band (860777-5003S + 757707-0033)
- 1.06 A/R, T4 Twin Scroll / V-Band (860777-5003S + 757707-0034)
- 1.19 A/R, T4 Twin Scroll / V-Band (860777-5003S + 757707-0035)
- 860777-5003S: G40-900 Standard Rotation Supercore ONLY
Fully machined speed sensor and pressure ports, water fittings included.
Garrett G40-900 Specifications
- Upgraded Inconel Turbine Wheel
- Aluminium Back Plate
- Ceramic Dual Ball Bearing with Steel Cages
- Stainless Steel Turbine Housing
- 76% Maximum Efficiency
- Compressor Inducer: 62mm
- Compressor Exducer: 88mm
- Compressor Trim: 51
- Compressor A/R: 0.80
- Turbine Inducer: 77mm
- Turbine Exducer: 70mm
- Turbine Trim: 84
Understanding the Name
G Series turbocharger
40 classifies the size of the frame
900 identifies the maximum crank horsepower rating of the turbocharger
The proof is in the pudding! We have tried and tested the G Series range of turbos on almost every in house build including HYPGAME, ONE2RUN, STCHDUP and more! If you’re looking for the best turbo upgrade for your JDM performance engine, you can’t look past a Garrett turbo.
If you are looking for a 700hp turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!

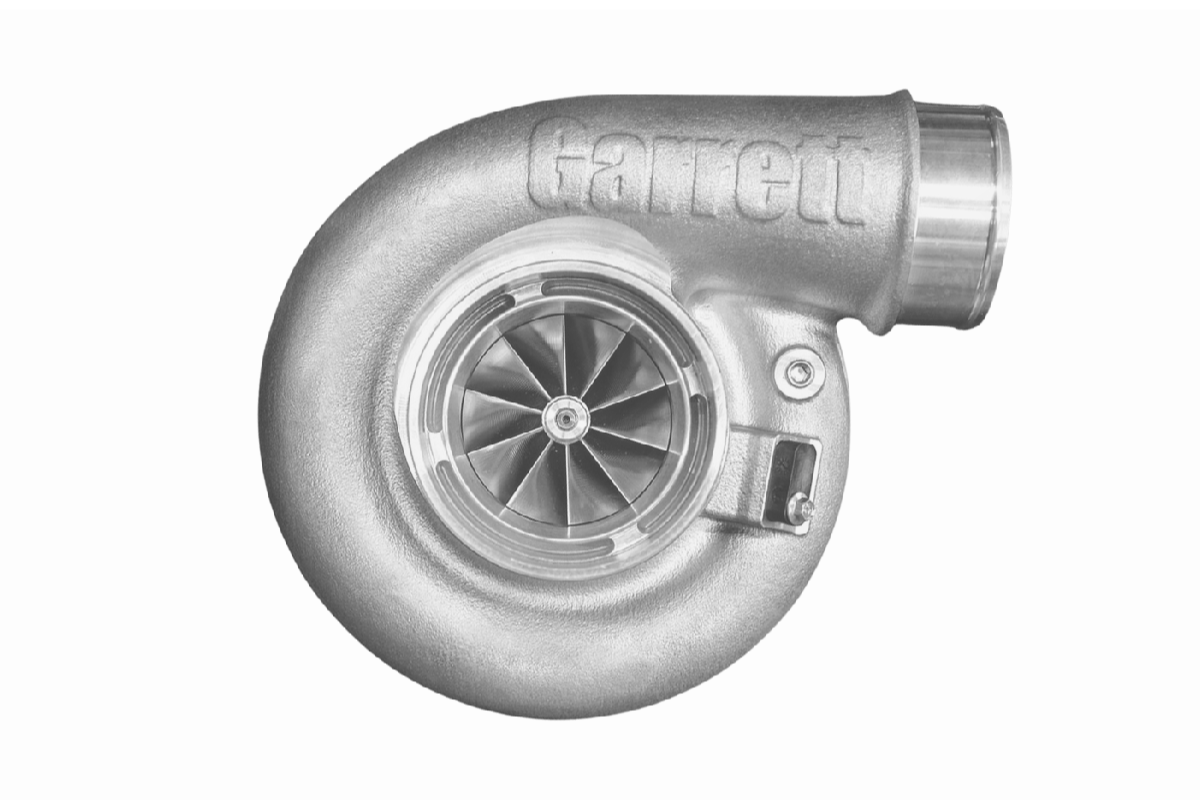

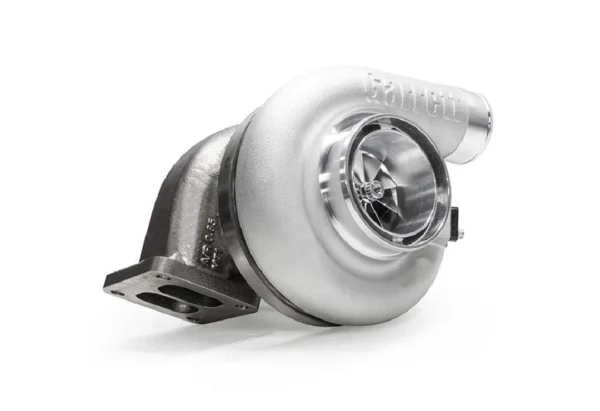

Note: Image is for display purposes only.
