Garrett G35-900 Turbocharger 62mm (Reverse Rotation)
$3,445.00 – $4,099.00
FREE SHIPPING
Description

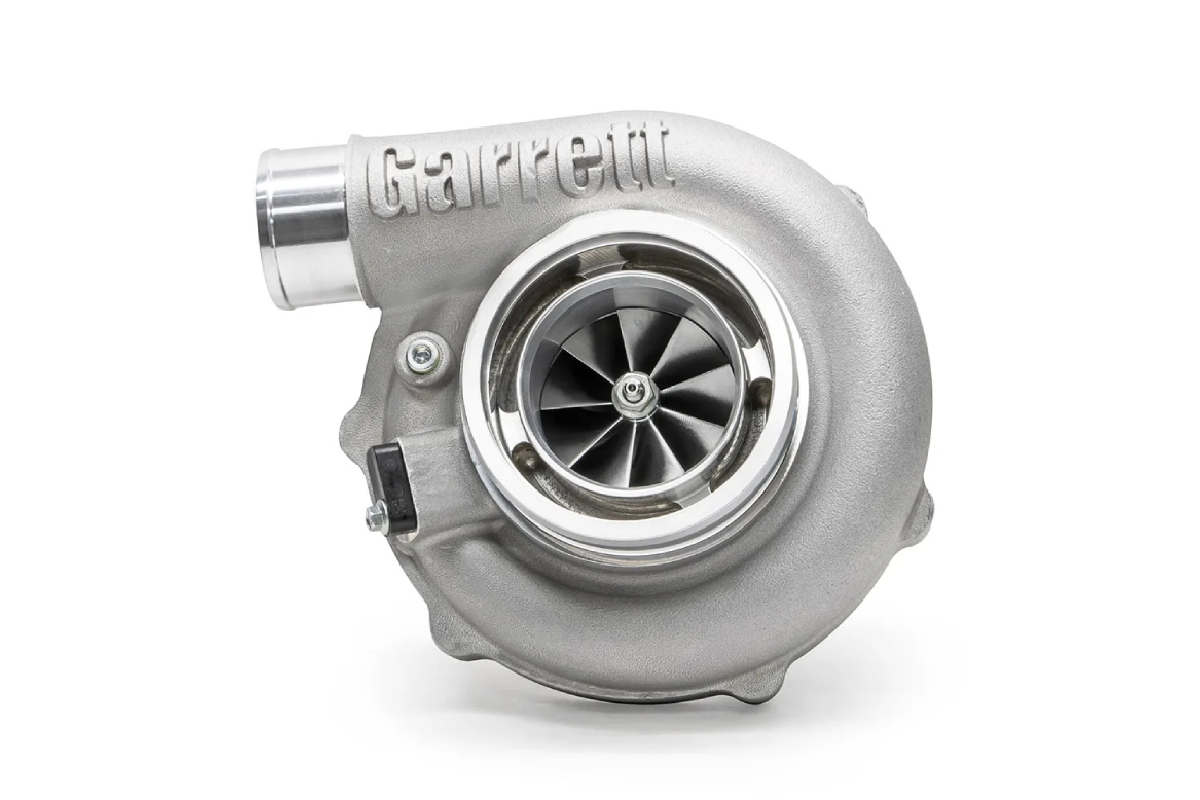

Garrett G35-900 Reverse Rotation Turbocharger 62mm
The G35-900 Reverse Rotation is one of the largest reverse rotation turbocharges available in the Garrett G Series of turbochargers! (the G35 is the largest frame turbo in which the reverse rotation configuration is offered).
Whether for a symmetrical twin turbo application or for a single turbo performance application, Garrett offers a total of 7 reverse rotation turbochargers in it’s G Series range offering all the best features of the G-Series including improved air flow for ultimate efficiency and horsepower!
- Reverse Rotation
- External Wastegate
- 2.0L – 5.5L engine displacements
- 550HP – 900HP
- V-Band or T3
- 0.61, 0.83, 1.01 or 1.21 A/R
The G35-900 is also available in standard rotation, click here to shop!
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G35-900, we would recommend it’s use in up to 720 wheel horsepower applications.
Turbocharger Options
This turbo can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone Garrett G35-900 reverse rotation turbine housing orders and internal wastegate options.
- 0.61 A/R, V-Band / V-Band (880696-5001S – 740902-0112)
- 0.83 A/R, V-Band / V-Band (880696-5001S – 740902-0113)
- 1.01 A/R, V-Band / V-Band (880696-5001S – 740902-0114)
- 1.21 A/R, V-Band / V-Band (880696-5001S – 740902-0115)
- 0.83 A/R, T3 / V-Band (880696-5001S + 740902-0116)
- 1.01 A/R, T3 / V-Band (880696-5001S + 740902-0117)
- G35-900 Reverse Rotation Supercore ONLY (880696-5001S)
Fully machined speed sensor and pressure ports, water fittings and oil restrictor included.
Garrett G35-900 Reverse Rotation Specifications
- Ceramic Dual Ball Bearing with Steel Cages
- Stainless Steel Turbine Housing
- Mar-M Turbine Wheel
- 74% Maximum Efficiency
- Compressor Inducer: 62mm
- Compressor Exducer: 76mm
- Compressor Trim: 65
- Compressor A/R: 0.72
- Turbine Inducer: 68mm
- Turbine Exducer: 62mm
- Turbine Trim: 84
Understanding the Name
G Series turbocharger
35 classifies the size of the frame
900 identifies the maximum crank horsepower rating of the turbocharger
The proof is in the pudding! We have tried and tested the G Series range of turbos on almost every in house build including HYPGAME, ONE2RUN, STCHDUP and more! If you’re looking for the best turbo upgrade for your JDM performance engine, you can’t look past a Garrett turbo.
If you are looking for a 700HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
