Garrett G35-1050 Turbocharger 68mm (Reverse Rotation)
$3,850.00 – $4,099.00
FREE SHIPPING
Ships in 2 – 3 days
Description

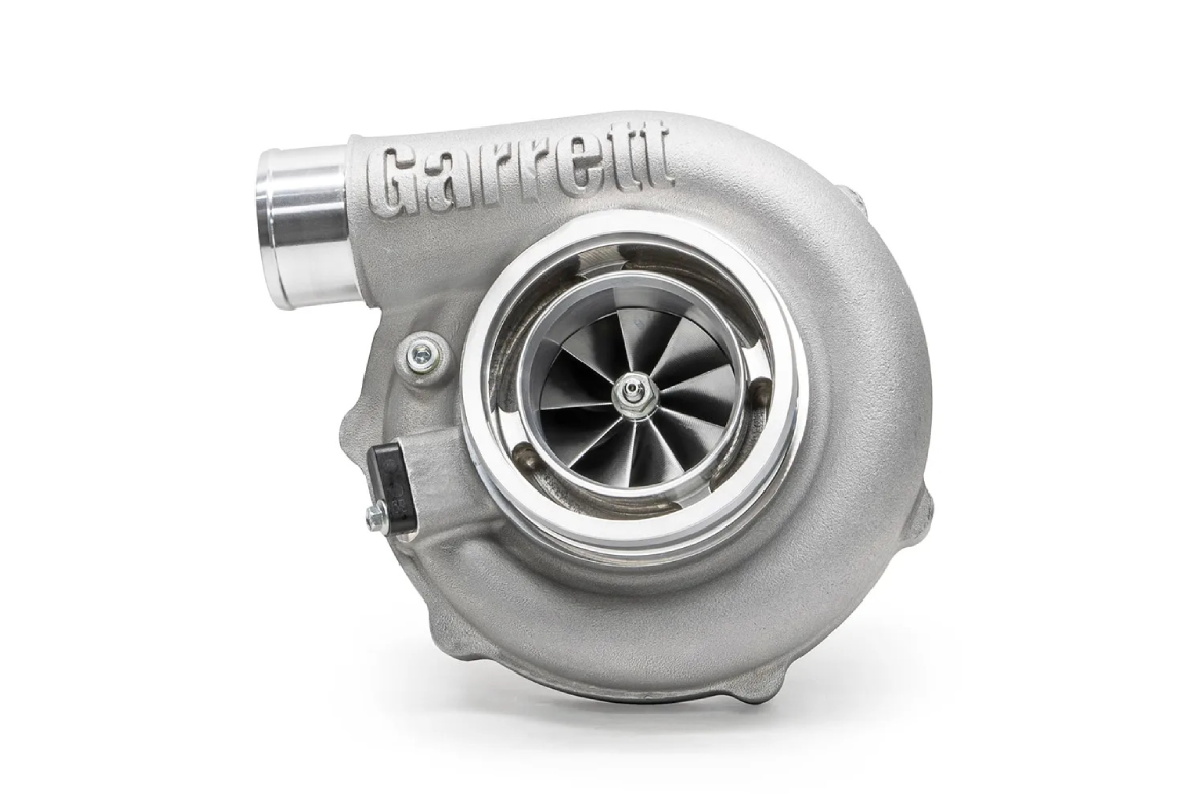

Garrett G35-1050 Reverse Rotation Turbocharger 68mm
The G35-1050 Reverse Rotation offers the largest frame reverse rotation turbo in the Garrett G Series turbochargers! Whether for a symmetrical twin turbo application or for a single turbo performance application, Garrett offers a total of 7 reverse rotation turbochargers in it’s G Series range offering all the best features of the G-Series including improved air flow for ultimate efficiency and horsepower!
- Reverse Rotation
- External Wastegate
- 2.0L – 5.5L engine displacements
- 700HP – 1050HP
- V-Band or T3
- 0.61, 0.83, 1.01 or 1.21 A/R
The G35-1050 is also available in standard rotation, click here to shop!
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G35-1050 we would recommend it’s use in up to 840 wheel horsepower applications.
Turbocharger Options
This turbo can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone Garrett G35-1050 turbine housing orders.
- 0.61 A/R, V-Band / V-Band (880696-5002S – 740902-0112)
- 0.83 A/R, V-Band / V-Band (880696-5002S – 740902-0113)
- 1.01 A/R, V-Band / V-Band (880696-5002S – 740902-0114)
- 1.21 A/R, V-Band / V-Band (880696-5002S – 740902-0115)
- 0.83 A/R, T3 / V-Band (880696-5002S + 740902-0116)
- 1.01 A/R, T3 / V-Band (880696-5002S + 740902-0117)
- G35-1050 Reverse Rotation Supercore ONLY (880696-5002S)
Fully machined speed sensor and pressure ports, water fittings and oil restrictor included.
Garrett G35-1050 Reverse Rotation Specifications
- Ceramic Dual Ball Bearing with Steel Cages
- Stainless Steel Turbine Housing
- High Temperature Resistant
- Compressor Inducer: 68mm
- Compressor Exducer: 84mm
- Compressor Trim: 65
- Compressor A/R: 0.75
- Turbine Inducer: 68mm
- Turbine Exducer: 62mm
- Turbine Trim: 84
Understanding the Name
G Series turbocharger
35 classifies the size of the frame
1050 identifies the maximum crank horsepower rating of the turbocharger
The proof is in the pudding! We have tried and tested the G Series range of turbos on almost every in house build including HYPGAME, ONE2RUN, STCHDUP and more! If you’re looking for the best turbo upgrade for your JDM performance engine, you can’t look past a Garrett turbo.
If you are looking for a 800HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
