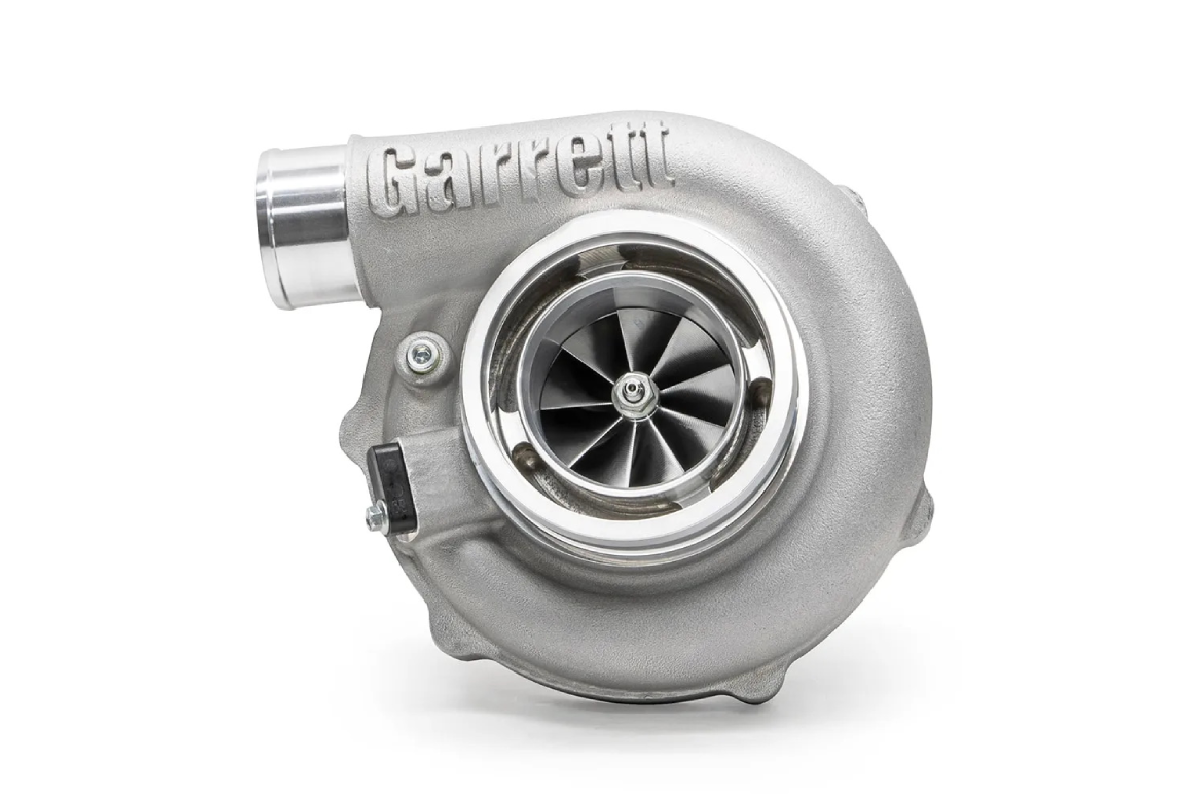

Garrett G30-900 Turbocharger 62mm (Reverse Rotation)

Description

Garrett G30-900 Reverse Rotation Turbocharger 62mm

The G30-900 Reverse Rotation turbo is one of the reverse rotation turbocharges from the Garrett G Series turbochargers! Whether for a symmetrical twin turbo application or for a single turbo performance application, Garrett offers a total of 7 reverse rotation turbochargers in it’s G Series range offering all the best features of the G-Series including improved air flow for ultimate efficiency and horsepower!

• Standard Rotation
• External Wastegate
• 2.0L – 3.5L engine displacements
• 550HP – 900HP
• V-Band, T3 or Twin Scroll T4
• 0.61, 0.83, 1.01 or 1.21 A/R

The G30-900 is also available in standard rotation, click here to shop!

TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G30-900, we would recommend it’s use in up to 720 wheel horsepower applications.

Turbocharger Options
This turbo can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone Garrett G30-900 reverse rotation turbine housing orders and internal wastegate options.

• 0.61A/R, V-Band / V-Band (880694-5003S + 740902-0096)
• 0.83A/R, V-Band / V-Band (880694-5003S + 740902-0097)
• 1.01A/R, V-Band / V-Band (880694-5003S + 740902-0098)
• 1.21A/R, V-Band / V-Band (880694-5003S + 740902-0099)
• 0.83A/R, T3 / V-Band (880694-5003S + 740902-0100)
• 1.01A/R, T3 / V-Band (880694-5003S + 740902-0101)
• G30-900 Reverse Rotation Supercore ONLY (880694-5003S)

Fully machined speed sensor and pressure ports, water fittings and oil restrictor included.

Garrett G30-900 Reverse Rotation Specifications

• Ceramic Dual Ball Bearing with Steel Cages
• Stainless Steel Turbine Housing
• Mar-M Turbine Wheel
• 74% Maximum Efficiency
• Compressor Inducer: 62mm
• Compressor Exducer: 76mm
• Compressor Trim: 65
• Compressor A/R: 0.72
• Turbine Inducer: 60mm
• Turbine Exducer: 55mm
• Turbine Trim: 84

Understanding the Name

G Series turbocharger
30 classifies the size of the frame
900 identifies the maximum horsepower rating of the turbocharger

The proof is in the pudding! We have tried and tested the G30-900 on many RB engine combinations including Justin’s RB25/30 making a reliable 700HP on 38PSI.

If you are looking for a 700HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
