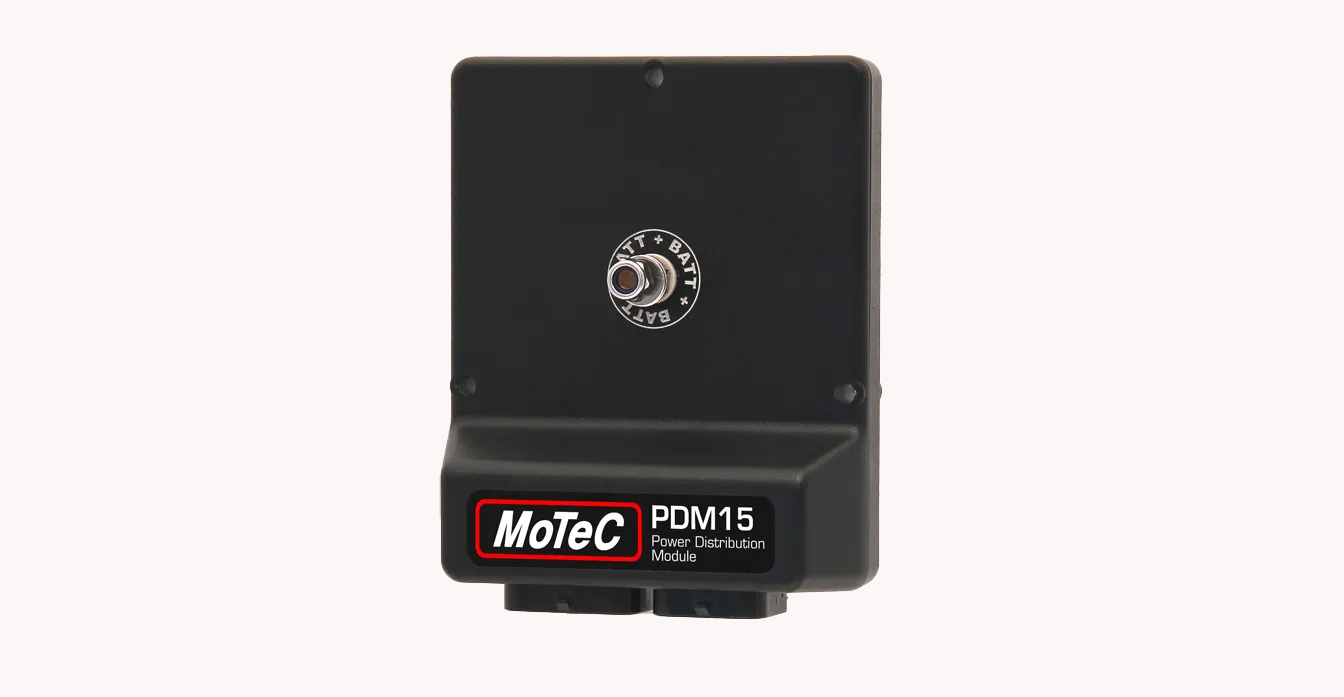

Motec PDM 15

Description

Overview

MoTeC’s 15 output Power Distribution Module is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights, solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers to simplify wiring and switch requirements, while increasing reliability.

Features

• Each output is over-current, short circuit and thermal overload protected
• Outputs programmable in 1 A steps and controllable via a combination of switch inputs, CAN messages and logic functions
• Performs up to 200 logic operations and functions that can be used to selectively turn off systems
• Provides full diagnostic information via CAN

Specifications

Inputs

• 16 x switch inputs: range 0 to 51 V, resolution 0.2 V

Outputs

• 8 x 20 A outputs: 20 A continuous, 115 A transient (typical)
• 7 x 8 A outputs: 8 A continuous, 60 A transient (typical)

Communications

• 1 x CAN

Operating Voltage

• 30 V max

Ingress Protection (IP) Rating

• Conformal coating on PCB

Physical

• 1 x 34 and 1 x 26 pin waterproof connectors, 1 x M6 stud
• Case size 107.5 x 127.5 x 38.7 mm
• Weight 260 grams

COMPATIBILITY

Motec ECU Models

• M1 Series (package dependent)
• Discontinued: M84, M400, M600, M800, M880

Motec Dash/Logger Models

• C125, C127, C1212, C185, C187, C1812, CDL3, L120, L180
• Discontinued: SDL, SDL3, ADL, ADL2, ADL3, ACL
