Garrett G30-770 Turbocharger 58mm
$2,715.00 – $3,499.00
FREE SHIPPING
Description

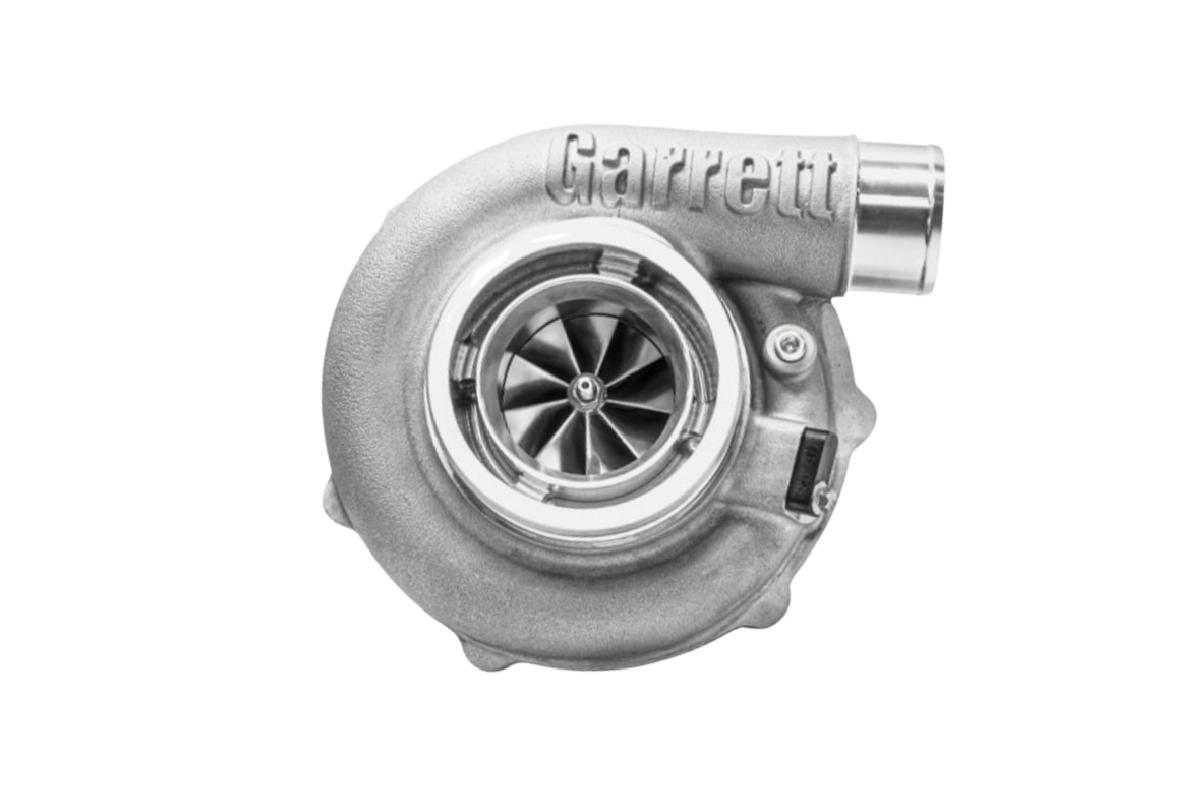

Garrett G30-770 Turbocharger 58mm
Looking for ultimate responsiveness while making up to 600 wheel horse power? The G30-770 offers just that, perfect for the 500 – 600HP RB engine!
- Standard Rotation
- External Wastegate
- 2.0L – 3.5L engine displacements
- 475HP – 770HP
- V-Band, T3 or Twin Scroll T4
- 0.61, 0.83, 1.01, 1.06 or 1.21 A/R
The G30-770 is also available in reverse rotation, click here to shop!
TIP: Garrett horsepower ratings are calculated at crank horsepower not wheel horsepower. As an estimate, reduce ratings by 20% for wheel horsepower ratings. For the G30-770, we would recommend it’s use in up to 616 wheel horsepower applications.
Turbocharger Options
This turbo can be purchased as a kit (with turbine housing) or as a stand-alone supercore. Contact us for stand-alone Garrett G30-770 turbine housing orders and internal wastegate options.
- 0.61 A/R, V-Band / V-Band (880693-5002S + 740902-0086)
- 0.83 A/R, V-Band / V-Band (880693-5002S + 740902-0087)
- 1.01 A/R, V-Band / V-Band (880693-5002S + 740902-0088)
- 1.21 A/R, V-Band / V-Band (880693-5002S + 740902-0089)
- 0.83 A/R, T3 / V-Band (880693-5002S + 740902-0090)
- 1.01 A/R, T3 / V-Band (880693-5002S + 740902-0091)
- 1.06 T4 Twin Scroll / V-Band (880693-5002S + 740902-0092)
- G30-770 Standard Rotation Supercore ONLY (880693-5002S)
Fully machined speed sensor and pressure ports, water fittings and oil restrictor included.
Garrett G30-770 Specifications
- Ceramic Dual Ball Bearing with Steel Cages
- Stainless Steel Turbine Housing
- Mar-M Turbine Wheel
- 74% Maximum Efficiency
- Compressor Inducer: 58mm
- Compressor Exducer: 71mm
- Compressor Trim: 65
- Compressor A/R: 0.72
- Turbine Inducer: 60mm
- Turbine Exducer: 55mm
- Turbine Trim: 84
Understanding the Name:
G Series turbocharger
30 classifies the size of the frame
770 identifies the maximum crank horsepower rating of the turbocharger
When shopping for a turbo, Garrett is leading contender with years of proof in performance under their belt. At SRS, we too have been pushing Garrett turbos from 500 – 1000HP and are always recommending the investment for reliability and performance. Built stronger and performing better than competitors, you simply cannot go past a Garrett if you want to buy a turbo you can rely on!
If you are looking for a 600HP turbo and are unsure if this is the right turbo for your application and power goals, give us a call on 07 4602 3858!
